- All of the components you'll need for wiring your Gibson Les Paul guitar or bass, or other 4-control / 2-pickup guitar with a 3-way switch, in one convenient kit
- An economical choice for any wiring job, this standard kit features PVC-insulated wire, Alpha pots and ceramic capacitors
- Control knobs NOT included
- Wiring diagram included
- See Product Description for full list of kit components
This kit makes it easy to order all of the electronic components you need for wiring your Gibson® Les Paul® guitar or bass, or other 4-control / 2-pickup guitar with a 3-way switch (including a diagram to show you how).

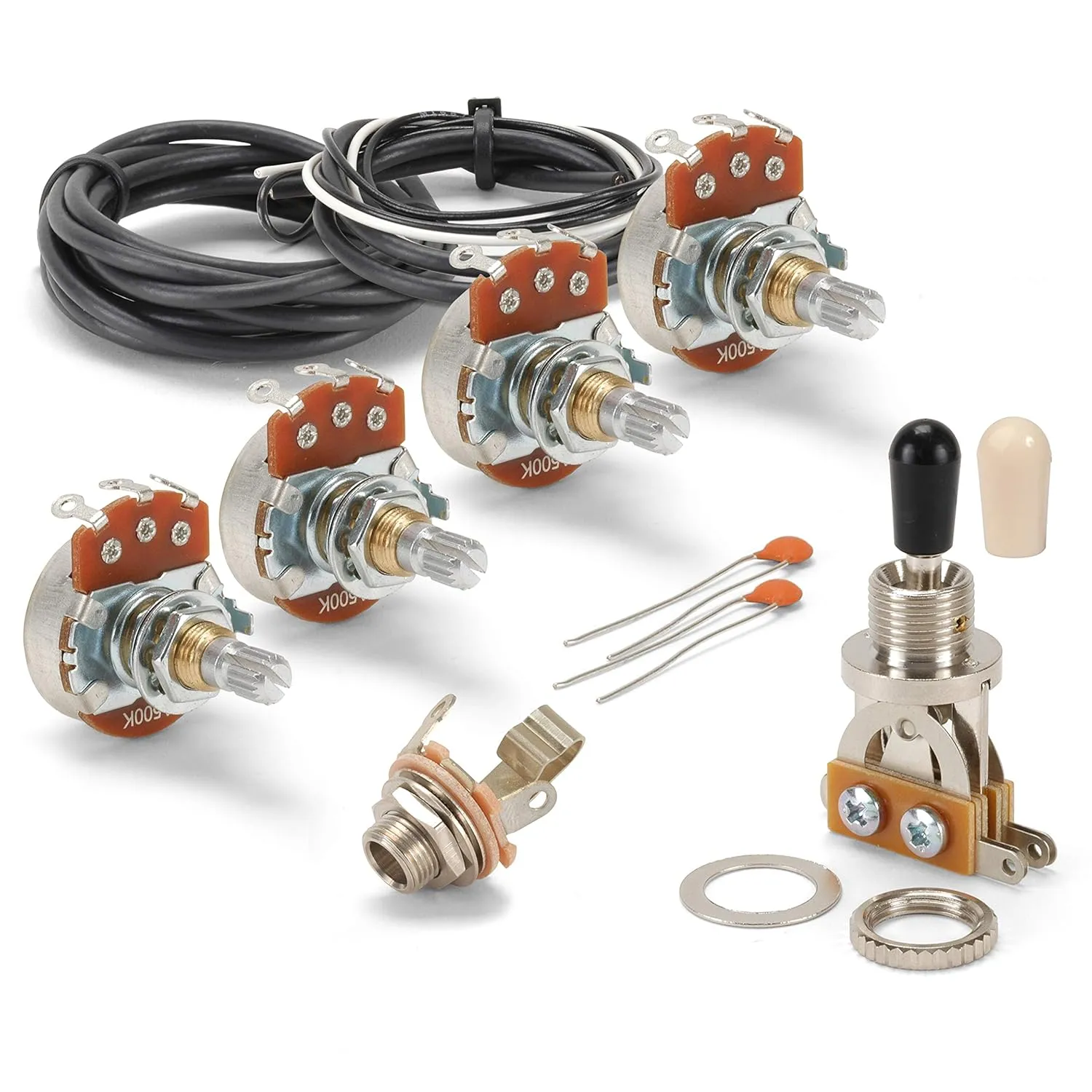

Wiring Kit for Gibson® Les Paul® includes:
- 1 - 1/4" output jack
- 2 - .022uF ceramic capacitors
- 1 - 3-way metric toggle switch
- 2 - switch knobs (1 black and 1 cream)
- 4 - 500K Alpha control pots (knobs NOT included)
- Non-shielded PVC-insulated circuit wire: 22AWG, white, 12" long
- Non-shielded PVC-insulated circuit wire: 22 AWG, black, 24" long
- Shielded guitar circuit wire: 26 AWG, black, 12" long
- Shielded guitar circuit wire: 26 AWG, black, 48" long
- Wiring diagram
Be sure your control knobs will fit! Alpha pots have a coarse-knurled 18-spline split shaft.
Alpha control pot specifications:
– Shaft diameter: 6mm split shaft, coarse knurling
– Thread: M8 x 0.75
– Thread height: 3/8" (9.52mm)
– Required mounting hole diameter: 5/16" (7.94mm)
3-way metric toggle switch specifications:
– Body cavity depth required: 15/16" (23.81mm)
– Mounting hole diameter: 1/2" (12.70mm)
– Thread height: 5/16" (7.94mm)
- Is Discontinued By Manufacturer : No
- Date First Available : November 17, 2016
- Manufacturer : StewMac
